Introduction: The Surprising Power Behind a Simple Throw

Imagine launching a marshmallow 150 feet across your backyard using nothing but a spoon, a rubber band, and a few popsicle sticks. Feels like a science experiment or a childhood prank β€” but it’s also a demonstration of an ancient weapon system known as the catapult.

From medieval castles to modern classrooms, catapults capture the imagination. They combine history, science, and engineering in a way few other machines do. Whether used in ancient warfare, physics education, or competitive robotics, catapults remain one of the most iconic examples of force conversion and stored energy in action.

Catapults Explained- ancient siege engine

In this blog, we’ll break down:

  • The physics behind how it work
  • The different types of catapults β€” from torsion-based mangonels to gravity-powered trebuchets
  • Their use in modern military testing, engineering education, and even DIY games like crossbow-catapult builds

By the end, you’ll not only understand how catapults work, but also appreciate their enduring role in history and modern innovation. Whether you’re a student, gamer, hobbyist, or history buff β€” there’s something in here for you.

What Is a Catapult?

Relying purely on physics, a catapult launches projectiles by converting potential energy into powerful kinetic force.

βš™οΈ Core Definition:

A catapult is a device that stores mechanical energy in the form of tension, torsion, or gravity, and rapidly releases it to launch an object over a distance.

Depending on the design, catapults store energy through:

  • Tension (rubber bands, springs)
  • Torsion (twisted ropes or sinew)
  • Gravity (counterweights, as seen in trebuchets)

The power comes not from pushing the object directly, but from accumulating energy and then releasing it explosively β€” a brilliant demonstration of physics at work.

πŸ”¬ Quick Physics Breakdown: How Do Catapults Work?

The basic principle of how catapults work involves energy transformation:

  1. Loading Phase: You apply force to β€œwind” or load the catapult arm β€” this builds potential energy.
  2. Holding Phase: The energy is stored via tension (like in a spring or twisted cord).
  3. Release Phase: When released, the energy converts rapidly to kinetic energy, propelling the object forward.

This makes catapults a classic classroom tool for teaching:

  • Energy conversion
  • Projectile motion
  • Mechanical advantage

Β The Energy Cycle of a Catapult

Β The Energy Cycle of a Catapult

In real terms: A stretched rubber band stores energy. Releasing it launches the payload. That’s catapult mechanics in action.

🧠 Why This Matters

Understanding catapult mechanics teaches foundational physics. But beyond that, it connects students with real-world applications β€” from medieval siege weapons to ballistics, aircraft carriers (steam catapults), and even Mars rovers, where spring-loaded systems help deploy payloads.

So the next time you pull back a slingshot, you’re reenacting the same principles that once decided the fate of empires.

Types of Catapults

It may seem like relics of the past, but their evolution spans thousands of years β€” from ancient siege engines to modern military tech, and even to today’s STEM toys and DIY kits.

Understanding catapult mechanics starts with exploring their variations across history, modern technology, and DIY applications.

πŸ”± Historical Siege Engines

Ancient warfare relied heavily on siege catapults to breach walls, destroy fortifications, and launch projectiles from a distance. Here are the most famous historical types of catapults:

Ballista – The Crossbow Giant

Power Source: Torsion (twisted ropes or sinew)

Design: Features twin arms resembling a massive crossbow, with a central groove for firing large bolts.

Use: Accuracy-focused weapon; fired large arrows or bolts

Range: ~300–500 meters

Ballistas were excellent for targeting enemy troops or wooden towers with precision. Think of them as ancient sniper rifles powered by physics.

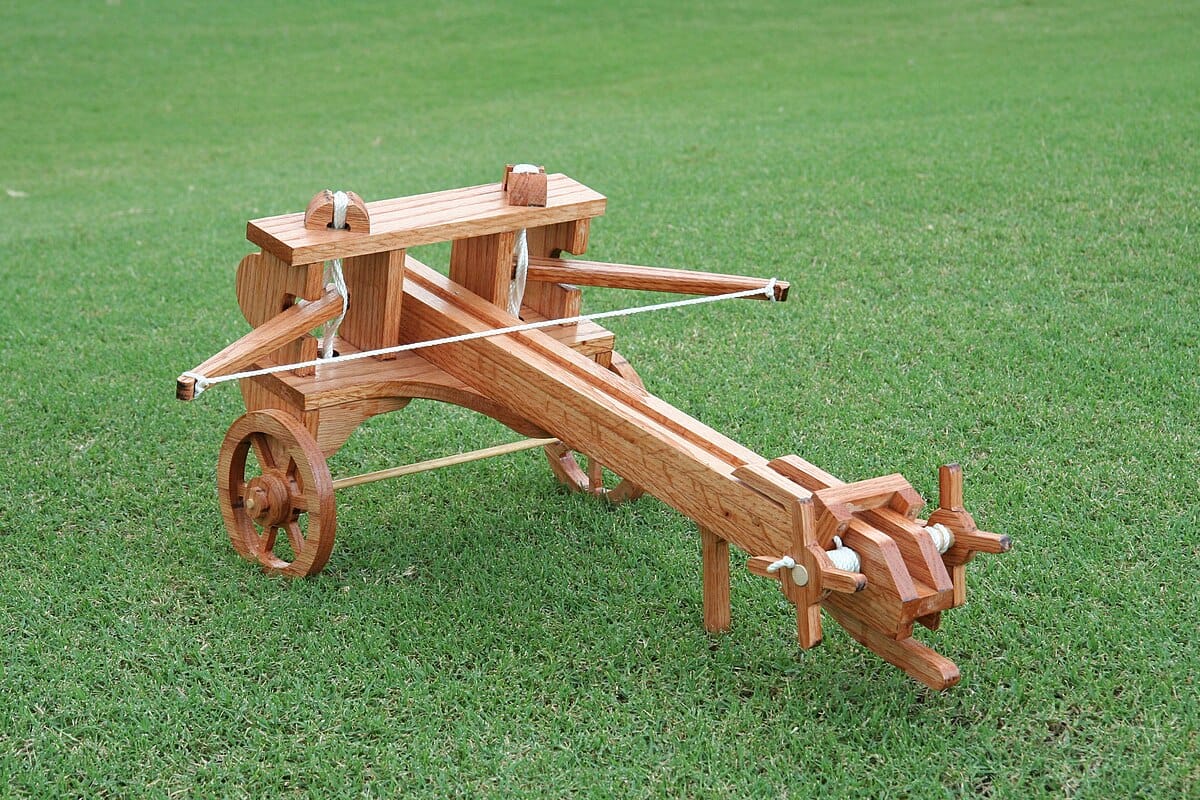

Ballista – The Crossbow Giant

Mangonel / Onager – The Tension Arm Thrower

Power Source: Tension (twisted rope or sinew powering a single arm)

Design: Spoon-shaped throwing arm; hurls rocks in arcs

Use: Area damage to walls or infantry

Range: ~300 meters

The Mangonel is the textbook image of a catapultβ€”simple, brutal, and effective. The Onager is its Roman cousin, with a recoil-absorbing base.

Trebuchet – The King of Catapults

Power Source: Gravity (via falling counterweight or human traction)

Types:

  • Counterweight Trebuchet: Massive hanging weights drop to swing the arm
  • Traction Trebuchet: Operated by teams pulling ropes

Use: Launching massive stones, diseased corpses, or fireballs

Range: Up to 500+ meters (more than most catapults)

The trebuchet offered incredible efficiency and power, especially in the torsion vs counterweight catapult debate. It required no twisting ropes β€” just physics and gravity.

Springald – The Compact Ballista

  • Power Source: Torsion
  • Design: Boxed structure with inward-facing arms
  • Use: Mounted on towers for close-range defense
  • Range: ~200 meters

It was smaller, faster to reload, and ideal for defensive positions β€” a more compact alternative to the Ballista.

βš–οΈ Comparison Table: Historical Types of Catapults

TypePower SourceStrengthsWeaknesses
BallistaTorsionPrecision, bolt speedComplex construction
MangonelTensionSimplicity, mobilityLimited accuracy
TrebuchetCounterweight/TractionHigh power, rangeLarge, slow to reload
SpringaldTorsionCompact, quick setupLower range

πŸ›« Modern & Military Catapults

Modern military engineering has adapted catapult mechanics for entirely new contexts β€” especially in aviation and kinetic launch systems.

Aircraft Carrier Catapult (Steam-Piston)

Use: Launching fighter jets from short runways

Mechanism: Steam builds up pressure to push a shuttle connected to the aircraft

Speed: Can accelerate jets from 0–150 mph in 2 seconds

This system transforms stored pressure into forward motion β€” a direct evolution of the catapult principle.

Electromagnetic Catapult (EMALS)

Use: Replaces steam with electromagnetic acceleration

Benefits:

  • Precise energy control
  • Lower maintenance
  • Lighter aircraft wear and tear

Current Use: USS Gerald R. Ford-class carriers

The EMALS system represents a cutting-edge adaptation of catapult mechanics, showing how ancient principles still apply in 21st-century warfare.

Hydraulic & Pneumatic Catapults

Used In: Crash simulations, lab testing, kinetic launchers

Mechanism: Fluid (hydraulic) or air (pneumatic) pressure builds and releases energy to move test objects

These systems are critical in aerospace and safety industries, simulating high-speed impacts using controlled energy bursts.

πŸ§ͺ Hobby & Educational Catapults

Catapults are also popular in educational and recreational settings, helping students learn physics hands-on.

Crossbows and Catapults Game

Origin: Popular 1980s tabletop game

Mechanics: Players use toy catapults and crossbows to knock down each other’s fortresses

Learning Value: Teaches basic principles of tension, trajectory, and impact

It’s a fun way to explore types of catapults in a gamified format.

DIY Popsicle & Rubber Band Catapults

Materials: Popsicle sticks, rubber bands, plastic spoons

Learning Topics:

  • Energy transformation
  • Launch angles and parabolas
  • Material resistance and elasticity

These classroom-friendly builds reinforce how catapults work and are ideal for STEM fairs or science projects.

How Do Catapults Work?

Let’s now break down the step-by-step mechanics of a catapult in action. Whether it’s a simple rubber-band model or a complex EMALS system, the energy transformation cycle is the same.

πŸ” Catapult Firing Cycle: Step-by-Step

Store Energy

Depending on the design, catapults store energy through:

  • Pulling a tensioned arm (e.g. mangonel)
  • Twisting ropes (e.g. torsion springald)
  • Lifting a heavy counterweight (e.g. trebuchet)

This creates potential energy in the system.

Lock and Load

The loaded arm or system is held in place by a trigger or locking mechanism. Energy is stored, but not yet released.

Release!

Triggering the release converts potential energy into kinetic energy, swinging the arm or launching the projectile.

Projectile Launch & Trajectory

The object follows a parabolic path, influenced by:

  • Launch angle (ideal = 45Β° in vacuum)
  • Air resistance (drag)
  • Mass of the projectile

This makes catapults ideal for exploring projectile motion, one of the most fundamental concepts in physics.

🧠 Physics Behind the Motion

Energy SourceExamples
TensionRubber bands, spring arms
TorsionTwisted rope, sinew
GravityCounterweight systems

Friction losses (in hinges or air) reduce total efficiency. Engineers design around this with lubricants, bearings, or aerodynamic shapes.

πŸ“Š Energy Equation (Simplified):

Stored Energy (Potential Energy in a Spring or Tension System)

Untitled11

Where:

  • k = spring constant
  • x = distance pulled

Kinetic Energy of the Launched Projectile

Untitled12

Where:

  • m = projectile mass
  • v = launch velocity

This math helps calculate launch speed and trajectory prediction.

Crossbows vs Catapults: A Clash of Ancient Engineering

At first glance, crossbows and catapults might seem similar β€” both are mechanical launchers that hurl projectiles using stored energy. But look closer, and you’ll find distinct differences in their mechanics, use cases, and evolution.

Let’s compare them side-by-side to better understand how these two iconic inventions stack up.

βš™οΈ Mechanics: Tension vs Lever Systems

FeatureCrossbowCatapult
Energy SourceTension from a drawn bowstringTension, torsion, or gravity (via lever arm)
Release MechanismTrigger mechanism releases stringArm or bucket is released mechanically
Projectile TypeArrows or boltsStones, balls, flaming payloads
Motion PathLinearArced/parabolic
  • A crossbow stores energy in its flexed limbs (like a compact bow). When the trigger is pulled, this tension is released instantly, firing a bolt at high velocity.
  • A catapult, on the other hand, stores energy through mechanical means such as a lever arm, twisted ropes, or dropped counterweights β€” using these systems to generate a large arcing force ideal for throwing heavier or bulkier projectiles.

🎯 Use Cases: Precision vs Power

  • Crossbows excel in precision and speed. Their compact design allows for accurate targeting, making them ideal in warfare for individual use or hunting.
  • Catapults are designed for massive force and distance. They sacrifice accuracy for the ability to launch heavy projectiles over walls or into enemy formations.

In modern engineering terms:

  • Crossbows are like snipers β€” sharp, efficient, and precise.
  • Catapults are like artillery β€” wide-reaching, powerful, and destructive.

πŸ•ΉοΈ Overlap in Games & Hobbies

The overlap of crossbows and catapults is most visible in tabletop games and educational kits.

One standout example is the nostalgic Crossbows and Catapults Game, where players build defenses and use both tools to knock down enemy structures. It brings both mechanics to life in a fun, interactive way.

In DIY STEM projects, kids build mini crossbows and catapults side-by-side to experiment with:

  • Launch angles
  • Energy storage
  • Force multiplication

This hands-on comparison enhances understanding of physics and mechanics while offering a fun way to engage with history and engineering.

Modern Applications & Fun Facts

You might think catapults are relics of medieval history, but their core principles are still applied in cutting-edge technology, educational platforms, and even entertainment. Let’s explore how modern science, the military, and the gaming world keep this ancient tech alive.

πŸš€ Aircraft Launch Systems (EMALS)

Modern aircraft carriers use catapult mechanics to launch jets from short runways. One of the most advanced systems is the Electromagnetic Aircraft Launch System (EMALS), which uses:

  • Linear electric motors
  • Precise force control
  • Faster recycling than steam-based systems

Fun Fact: EMALS can launch a fully loaded fighter jet from 0 to 150 mph in just 2–3 seconds using the same physics principles as a traditional catapult.

Aircraft Launch Systems (EMALS)

πŸ’£ Trench Warfare: WWI Grenade Catapults

During World War I, when conventional throwing couldn’t reach across no man’s land, soldiers improvised:

  • Hand grenade catapults powered by springs or elastic cords
  • Launch range: 50–100 meters
  • Quick-to-deploy trench artillery

They were small-scale but highly effective for short-range indirect fire β€” a blend of battlefield necessity and mechanical creativity.

πŸ•ΉοΈ Hobby Board Games & DIY Kits

The legendary Crossbows & Catapults: Fortress War board game was a major hit in the 1980s and early 2000s. It combined:

  • Toy construction
  • Physics-based attacks
  • Strategy and castle-building

The game still has a cult following, with newer 3D-printed kits and Arduino-powered variants appearing in maker spaces and STEM classrooms.

Build Your Own: DIY Rubber-Band Catapult

Nothing reinforces the understanding of catapult mechanics like building one yourself. Whether you’re a student, teacher, or curious maker, a DIY catapult project offers a fun way to explore physics, engineering, and creativity β€” right from your living room.

🧰 Build a Simple Rubber-Band Catapult

This beginner-friendly project is safe, cost-effective, and perfect for classrooms or home experiments.

πŸ“¦ Materials You’ll Need:

  • 7–10 popsicle sticks
  • 2–3 rubber bands (medium thickness)
  • 1 plastic spoon
  • 1 binder clip (optional for stability)
  • Glue or tape (optional)

πŸ› οΈ Step-by-Step Instructions:

  1. Create the Base

Stack six craft sticks evenly, then wrap a rubber band around each end to hold them firmly in place.

Build the Lever Arm

  • Take 2 popsicle sticks and insert the stack between them, forming a cross shape.

Attach the Spoon

  • Tape or glue the spoon to one end of the top stick (this is your throwing arm).

Assemble the Catapult

  • Wrap a rubber band around the joint where the sticks intersect. This is the pivot point β€” it stores tension and allows movement.

Test Launch

  • Place a marshmallow or paper ball in the spoon, press down on the arm, and release!

⚠️ Safety First

While this is a low-risk activity, it’s still important to practice DIY catapult safety β€” especially in classroom or group settings.

Safety Guidelines:

  • Launch in an open area with no breakable objects or pets nearby.
  • Wear eye protection if testing with heavier projectiles.
  • Use soft, lightweight ammo like paper balls, cotton, or marshmallows.
  • Don’t aim at people or animals.

This way, you’ll enjoy building and experimenting without accidents.

Conclusion: Catapults β€” From Siege Machines to STEM Marvels

From the battlefields of ancient empires to classrooms, games, and aircraft carriers, the catapult continues to amaze us with its elegant use of force, motion, and energy.

🏹 The Catapult’s Journey

We explored how this simple machine evolved:

  • Historical siege engines like the mangonel, ballista, and trebuchet
  • Modern applications in aircraft carriers, labs, and military tech
  • Hobbyist builds and educational kits that turn catapults into a tool for fun and learning

Despite the changes in design and purpose, the underlying physics remains the same: store energy β†’ release it β†’ launch.

Whether it’s tension, torsion, or gravity, catapults teach us how simple principles can deliver powerful results.

πŸ”§ Why It Matters

Catapults are more than weapons β€” they’re learning tools, historical artifacts, and engineering playgrounds. Building and testing one gives you firsthand experience with:

  • Kinetic vs potential energy
  • Mechanical advantage
  • Trajectory physics and force

And the best part? You can build one at home with a few rubber bands and a spoon.

What to Try Next:

  • Build your own mini catapult β€” a fun hands-on project for kids, classrooms, or weekend tinkerers.
  • Challenge your friends to a game of Crossbows and Catapults and bring medieval warfare to the tabletop.
  • Show off your creations! Post your DIY builds, launch tests, or slow-mo shots on social media and tag us.
  • Got questions or stuck on a step? Drop a comment below β€” we’d love to help or geek out with you!

Interested in More Ancient Technological Wonders? Check These Out:

  1. Ancient Engineering Marvels
    Explore awe-inspiring feats of construction from the ancient world that still puzzle modern engineers.

  2. Ancient Acoustic Technologies
    Discover how ancient civilizations mastered sound design in temples, theaters, and public spacesβ€”without modern tools.

  3. Discover Damascus Steel: History, Properties, and Uses
    Uncover the legend of Damascus steel, the ancient metal known for its strength, beauty, and mysterious forging techniques.

  4. Ancient Siege Engines: Ballista vs Catapult in Warfare
    Compare two powerful ancient war machines and how they shaped military strategy and engineering.

  5. Viking Sunstones: Unraveling the Secrets of Ancient Navigation
    Learn how Viking explorers may have used mysterious crystals to navigate the seasβ€”long before the compass.

Leave a Reply
